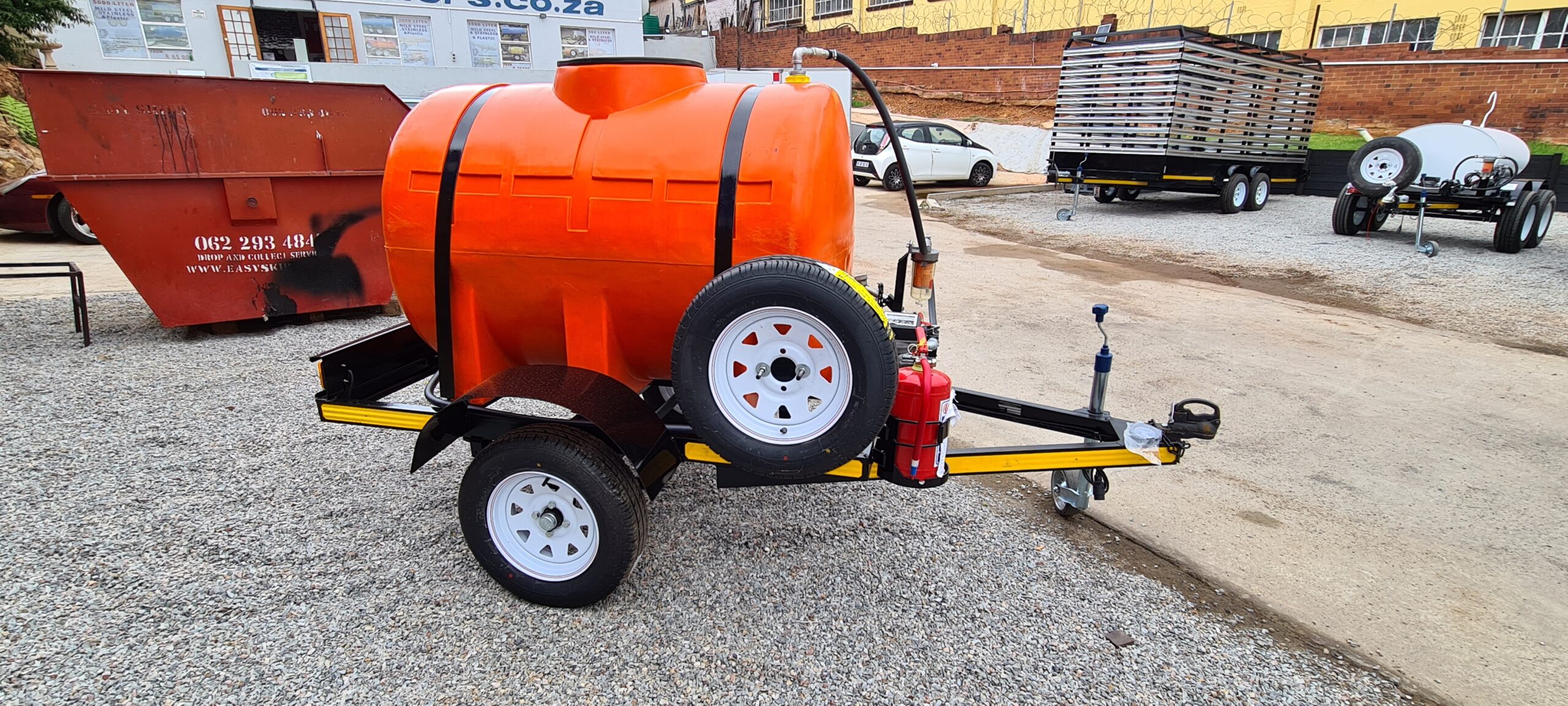

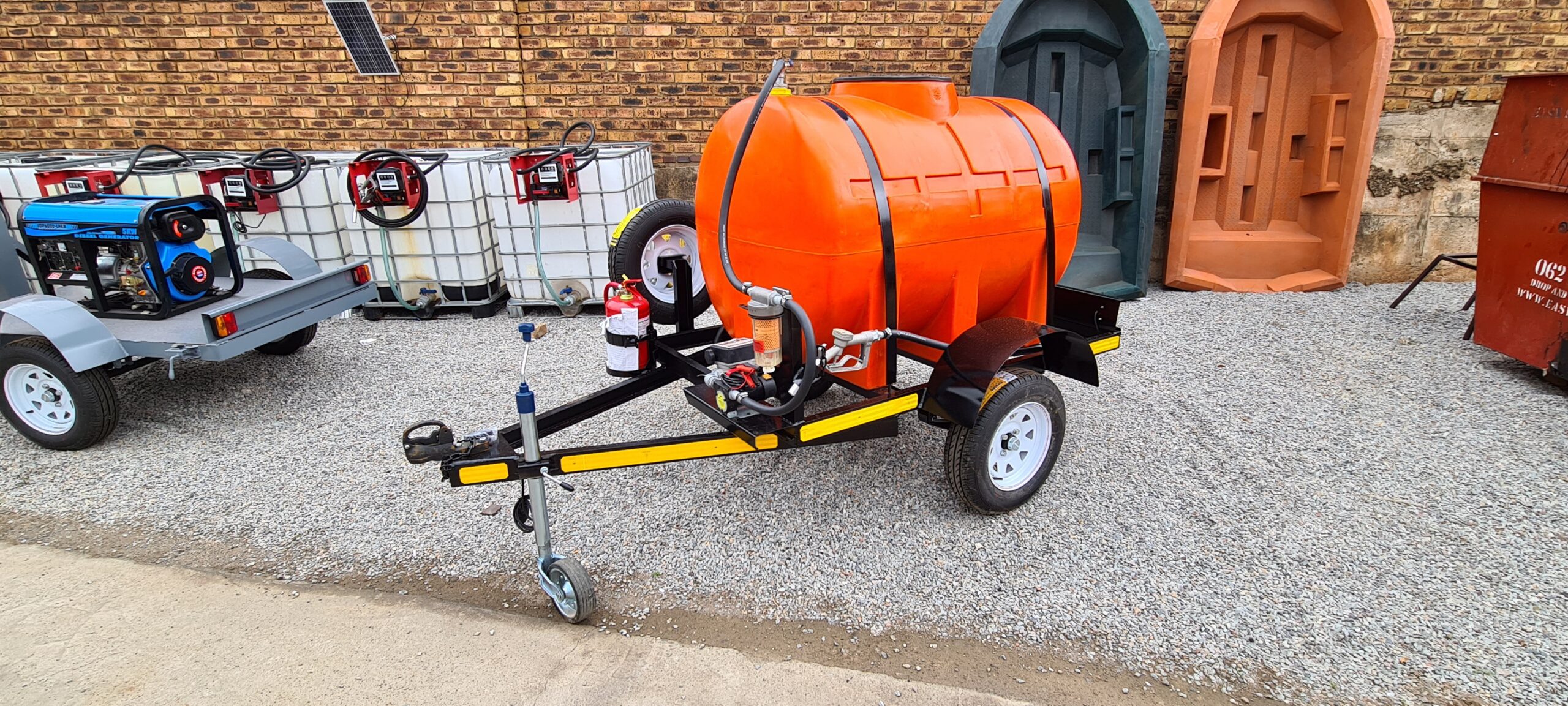

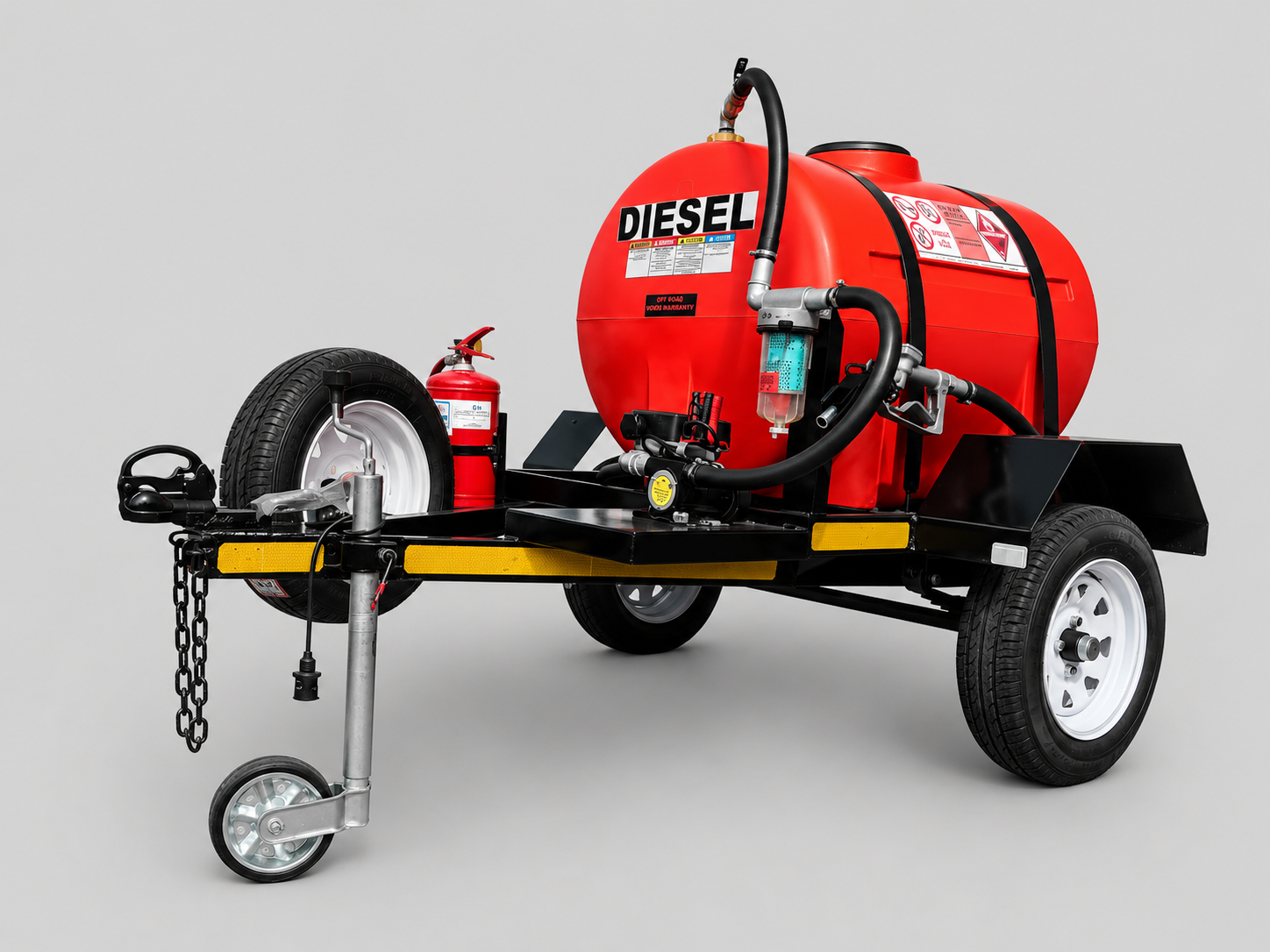

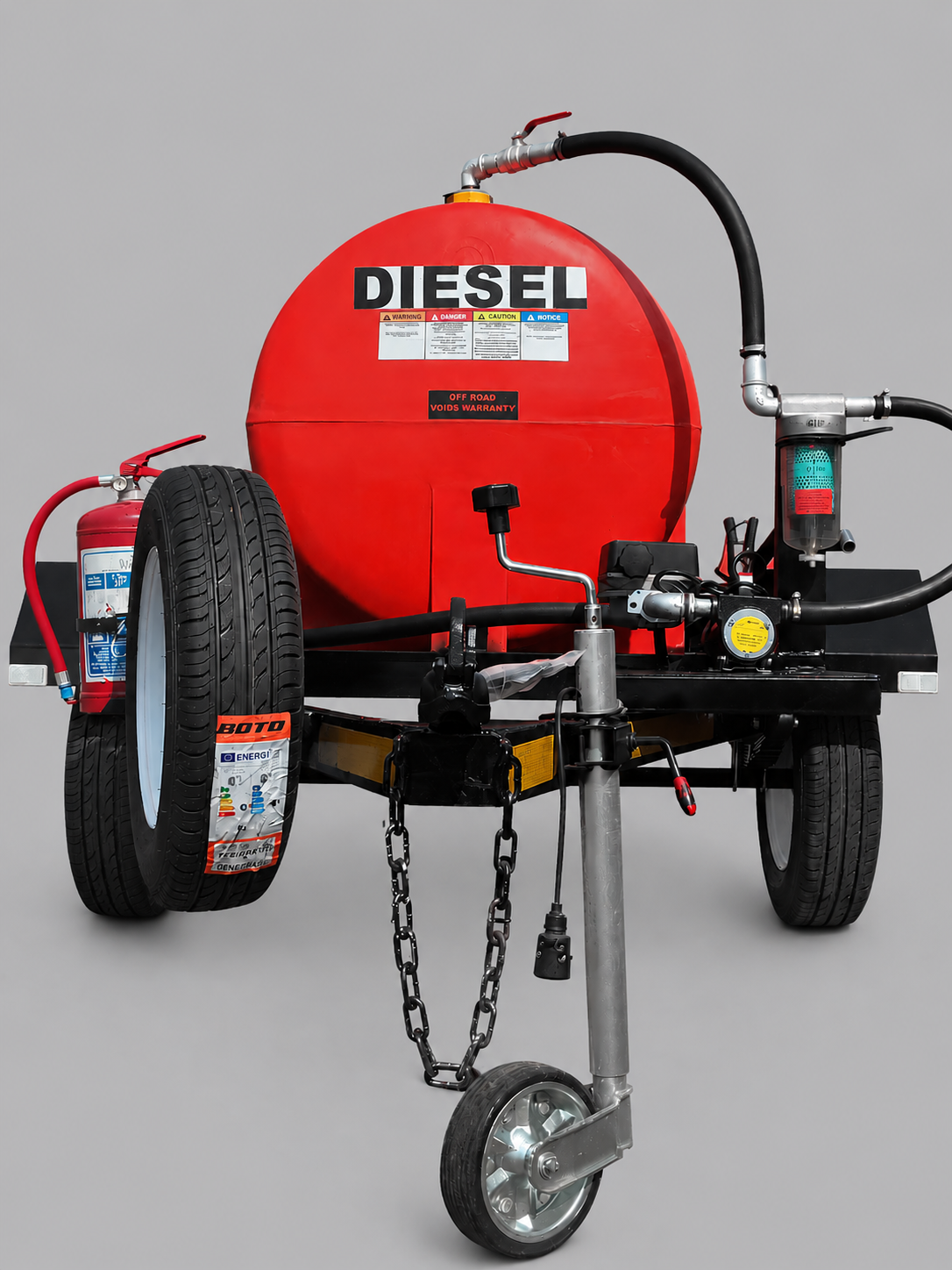

500 Litre Polyurethane Fuel Bowser Trailer – Compact Diesel Bowser for Sale

The 500 Litre Polyurethane Fuel Bowser Trailer from Trailers and Tankers is a compact, lightweight, and durable fuel transport solution designed for the safe storage and transportation of diesel and other approved fuels. Built for farms, construction sites, landscaping businesses, municipalities, plant hire companies, and fleet operators, this mobile fuel trailer offers exceptional durability with minimal maintenance.

Manufactured using a 75 x 38 mm heavy-duty U-channel steel chassis, the trailer is fitted with a 10 mm double-layer polyurethane tank, providing superior resistance to corrosion, UV exposure, impact damage, and harsh operating conditions compared to conventional steel tanks.

With a 750 kg Gross Vehicle Mass (GVM), this single-axle trailer is lightweight and easy to tow behind most passenger vehicles and light commercial vehicles. It is equipped with a 40 mm round axle rated for 750 kg, 13-inch wheels, and a 48 mm heavy-duty single-wheel jockey wheel for easy manoeuvring.

The trailer features a 750 kg non-braked cast coupler (rated to 1500 kg), making it ideal for lighter-duty fuel transport applications where braking systems are not required.

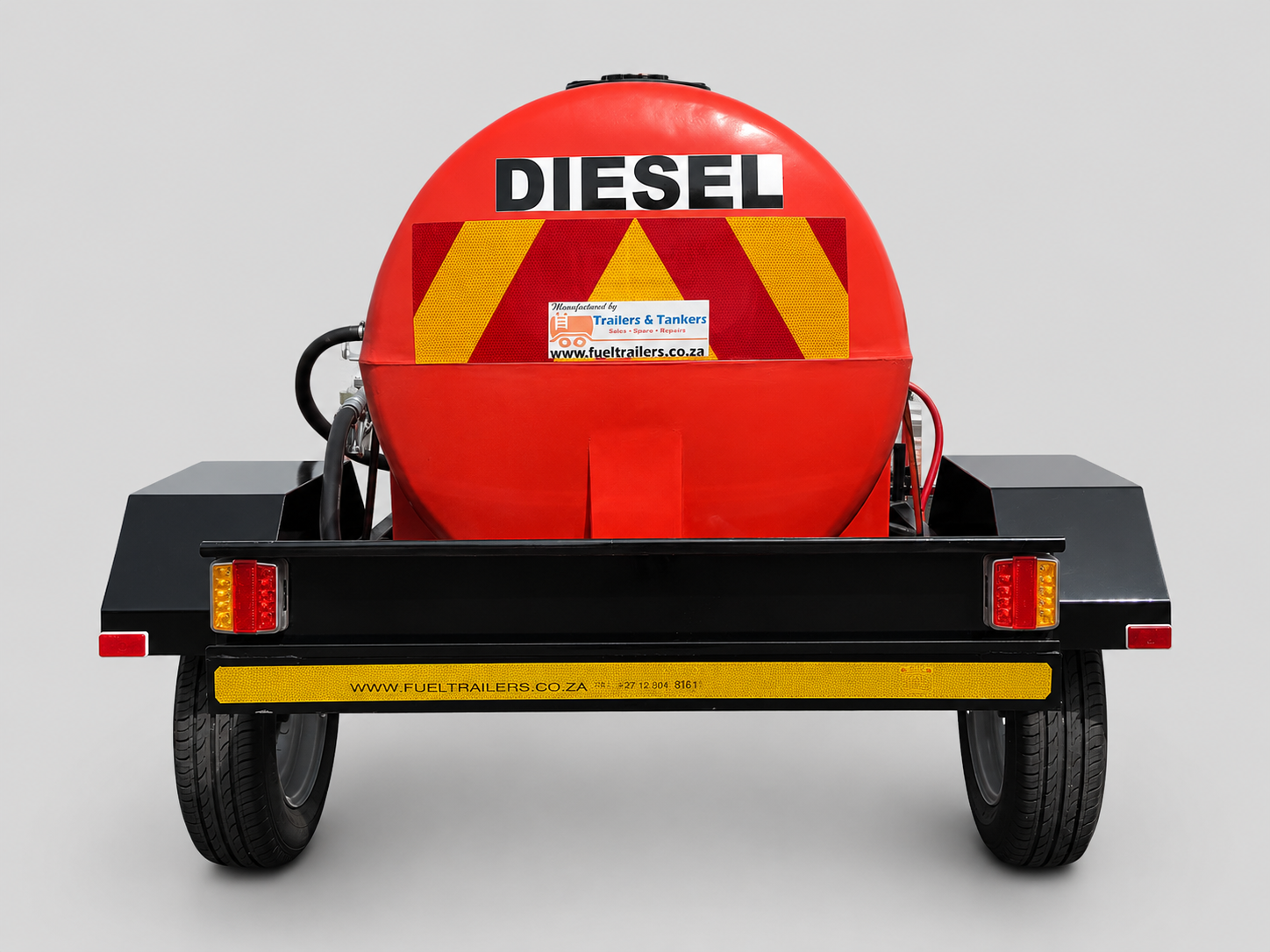

For maximum visibility and road compliance, the trailer includes a 4-in-1 halogen lighting system incorporating brake, park, indicator, and number plate lights, together with a 7-pin trailer plug, front and rear reflectors, a full-width 1150 mm chevron board, and 50 mm yellow reflective tape covering approximately 70% of each trailer side.

Supplied as a base trailer, this unit can be customised with a wide range of optional equipment including diesel pumps, hose reels, fuel meters, filtration systems, lockable toolboxes, battery systems, and dispensing accessories to suit your operational requirements.

Specifications

• Tank Capacity: 500 Litres
• Tank Material: 10 mm Double-Layer Polyurethane
• Gross Vehicle Mass (GVM): 750 kg
• Chassis: 75 x 38 mm Heavy-Duty U-Channel Steel
• Axle: Single 750 kg Non-Braked Round Axle
• Tyres: 13 Inch
• Jockey Wheel: 48 mm Heavy-Duty Single Wheel
• Coupler: 750 kg Non-Braked Cast Coupler (Rated 1500 kg)
• Lighting: 4-in-1 Halogen Combination Lights
• Electrical Connection: 7-Pin Trailer Plug
• Safety Equipment: Chevron Board, Reflective Tape and Road-Legal Reflectors
• Equipment: Base Trailer Only (No Dispensing Equipment Included)

Applications

• Diesel Transport
• Mobile Refuelling
• Agriculture and Farming
• Construction Sites
• Landscaping Contractors
• Plant Hire
• Fleet Maintenance
• Municipal Services
• Small Business Fuel Storage
• Industrial Fuel Transfer

Why Choose Our 500L Polyurethane Bowser?

• Lightweight and easy to tow
• Corrosion-resistant double-layer polyurethane tank
• Heavy-duty steel chassis
• Road-legal lighting and reflective safety equipment
• Low maintenance and long service life
• Ideal for farms, contractors and mobile refuelling
• Customisable with pumps, meters and hose reels
• Manufactured in South Africa to high-quality standards
