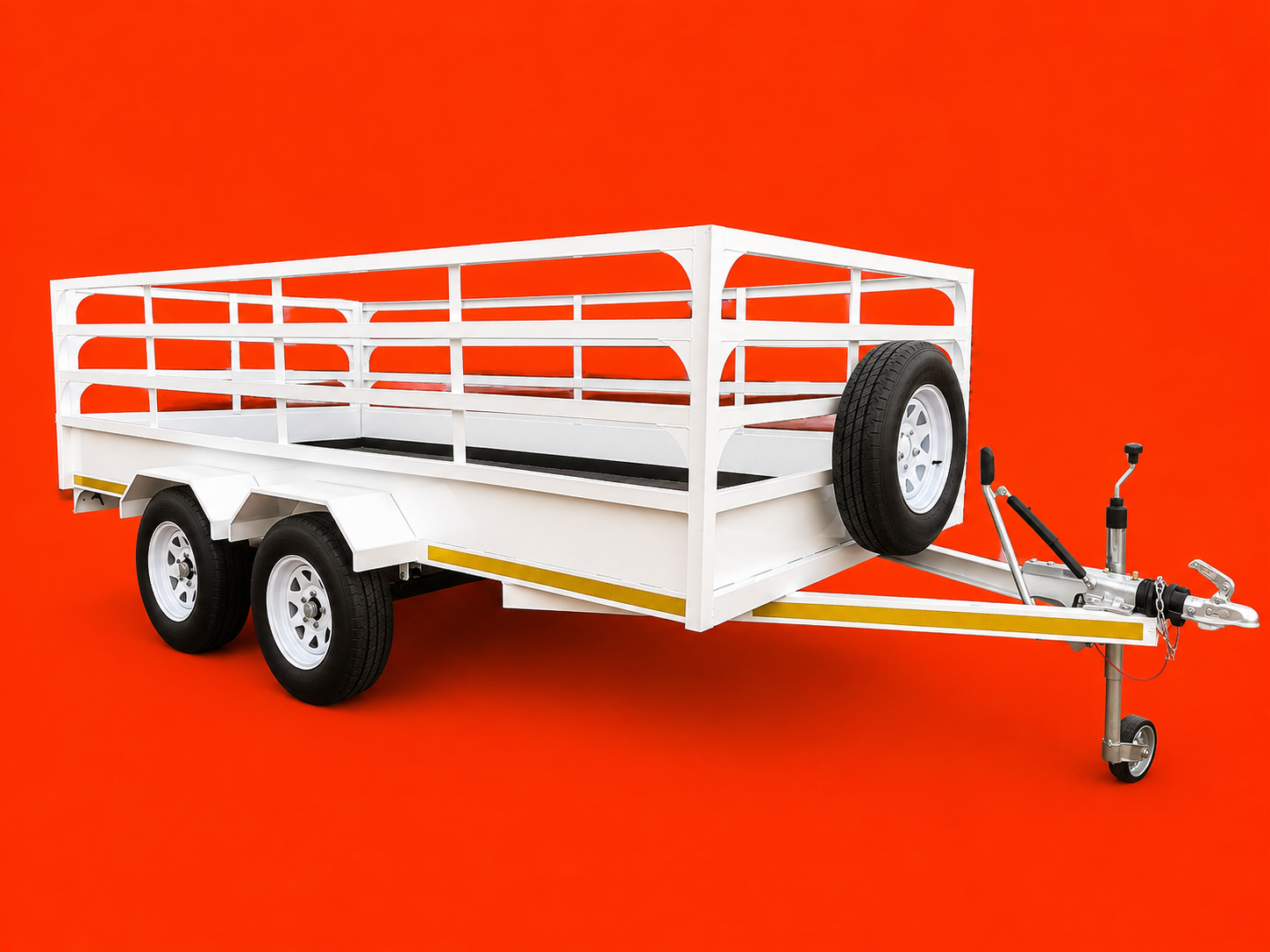

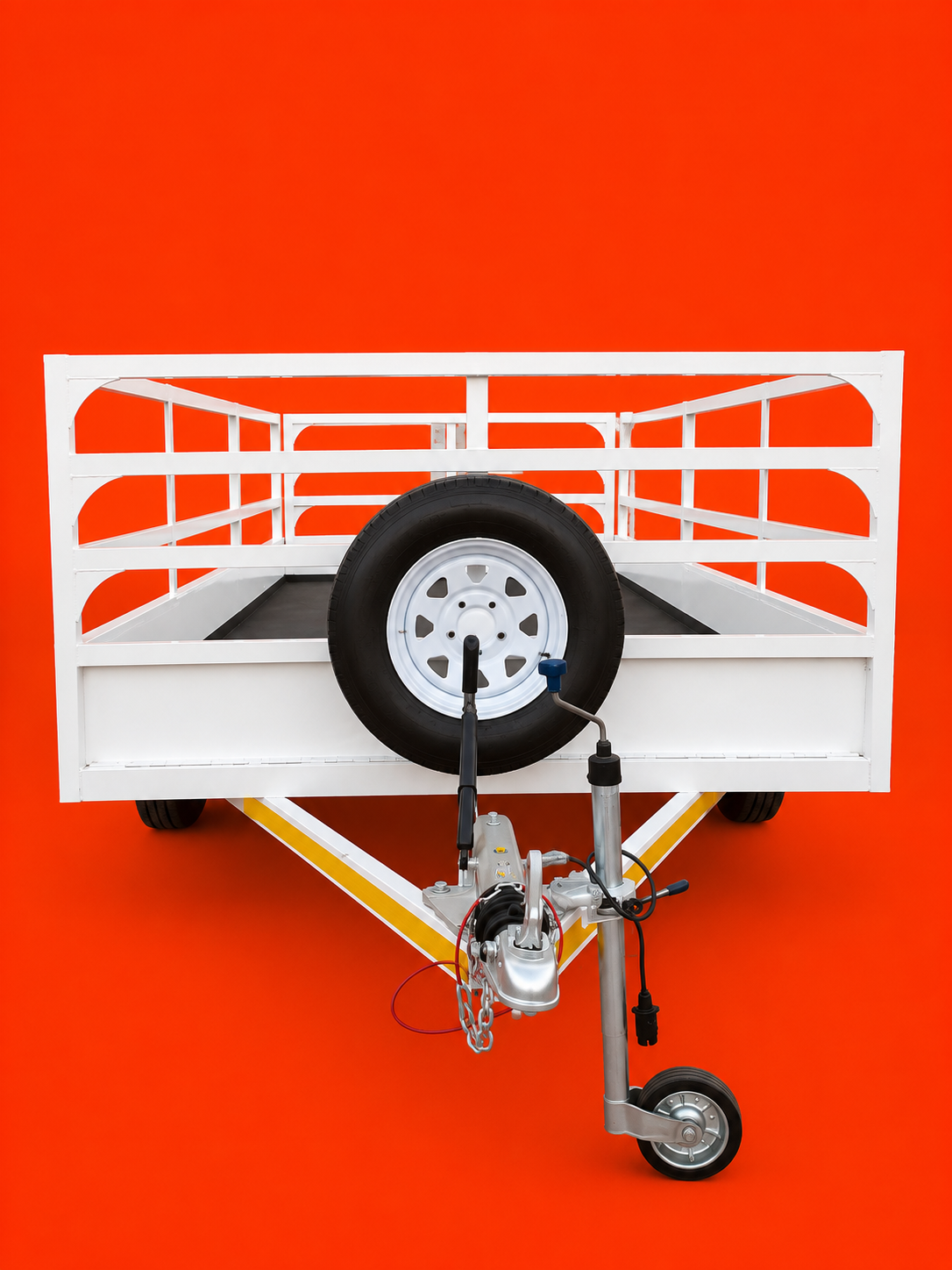

4 Metre Double Axle Open Cargo Trailer – Heavy-Duty Utility Trailer for Sale

The 4 Metre Double Axle Open Cargo Trailer from Trailers and Tankers is a premium heavy-duty utility trailer engineered for transporting large, heavy, and bulky loads with confidence. Designed for commercial, industrial, agricultural, construction, and fleet applications, this trailer offers exceptional strength, stability, and durability for demanding transport operations.

Featuring a spacious loading area measuring 4000 mm long x 1800 mm wide with 1200 mm high removable drop sides, this trailer provides excellent versatility for transporting machinery, building materials, pallets, agricultural products, landscaping equipment, generators, and general cargo.

Built to handle heavier loads, the trailer has a 3000 kg Gross Vehicle Mass (GVM) and is equipped with twin 1500 kg braked square axles, providing superior load distribution, towing stability, and improved braking performance compared to single axle trailers.

The heavy-duty chassis is manufactured from 100 x 50 mm U-channel steel, while the floor is constructed from 2.5 mm hot-rolled mild steel plate. The side panels, frame, and tailgate are built from 50 x 50 mm mild steel tubing, creating a robust trailer capable of withstanding demanding commercial use.

The trailer is fitted with 14-inch wheels, a 48 mm heavy-duty single-wheel jockey wheel, and a 3-ton galvanised cast iron braked coupler with integrated damper, ensuring secure towing and smooth handling on highways, construction sites, and off-road environments.

For maximum visibility and road compliance, the trailer includes a 4-in-1 halogen lighting system featuring brake, park, indicator, and number plate lights, together with a 7-pin trailer plug, front and rear reflectors, a 1150 mm rear chevron board, and 50 mm yellow reflective tape covering approximately 70% of both trailer sides.

This trailer can be customised with optional mesh sides, removable drop sides, loading ramps, spare wheel brackets, tie-down points, ladder racks, winches, lockable toolboxes, and other accessories to meet your specific transport requirements.

Specifications

• Loading Area: 4000 mm (L) × 1800 mm (W)
• Drop Side Height: 1200 mm
• Gross Vehicle Mass (GVM): 3000 kg
• Chassis: 100 x 50 mm Heavy-Duty U-Channel Steel
• Floor: 2.5 mm Hot-Rolled Mild Steel Plate
• Frame & Drop Sides: 50 x 50 mm Mild Steel
• Axles: Twin 1500 kg Braked Square Axles
• Tyres: 14 Inch
• Jockey Wheel: 48 mm Heavy-Duty Single Wheel
• Coupler: 3 Ton Braked Galvanised Cast Iron Coupler with Damper
• Lighting: 4-in-1 Halogen Combination Lights
• Electrical Connection: 7-Pin Trailer Plug
• Safety Equipment: Chevron Board, Reflective Tape and Road-Legal Reflectors
• Equipment: Base Trailer Only

Applications

• Heavy-Duty Cargo Transport
• Construction Materials
• Agricultural Equipment
• Farm Produce
• Machinery Transport
• Pallet Transport
• Industrial Equipment
• Plant Hire
• Commercial Deliveries
• General Freight

Why Choose Our 4 Metre Double Axle Cargo Trailer?

• Heavy-duty commercial construction
• Large 4.0 m × 1.8 m loading platform
• Twin braked axles for superior stability and safety
• Strong U-channel steel chassis
• Durable 2.5 mm hot-rolled steel floor
• Road-legal lighting and reflective safety equipment
• Customisable with ramps, mesh sides, toolboxes, tie-downs and winches
• Proudly manufactured in South Africa
