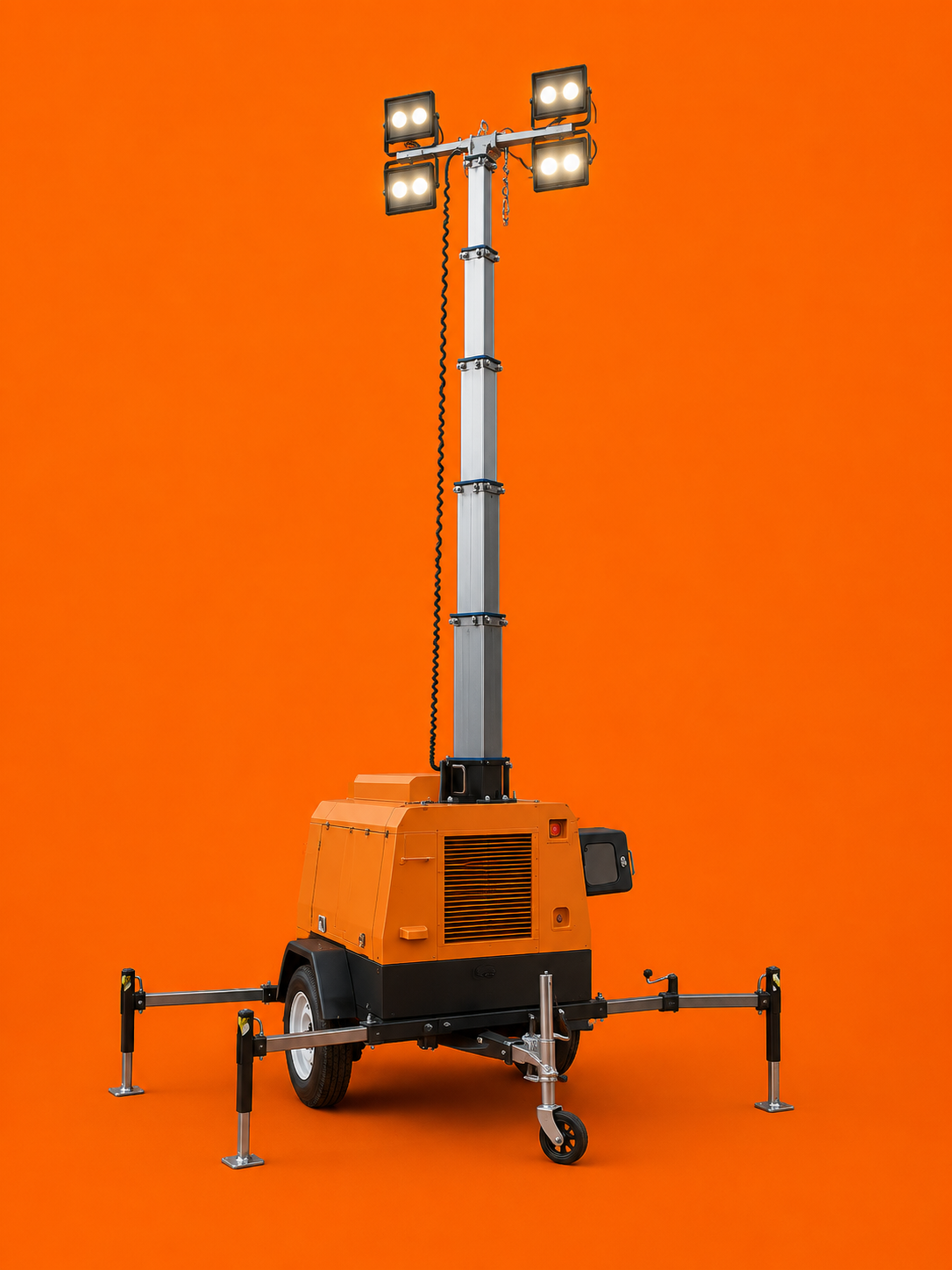

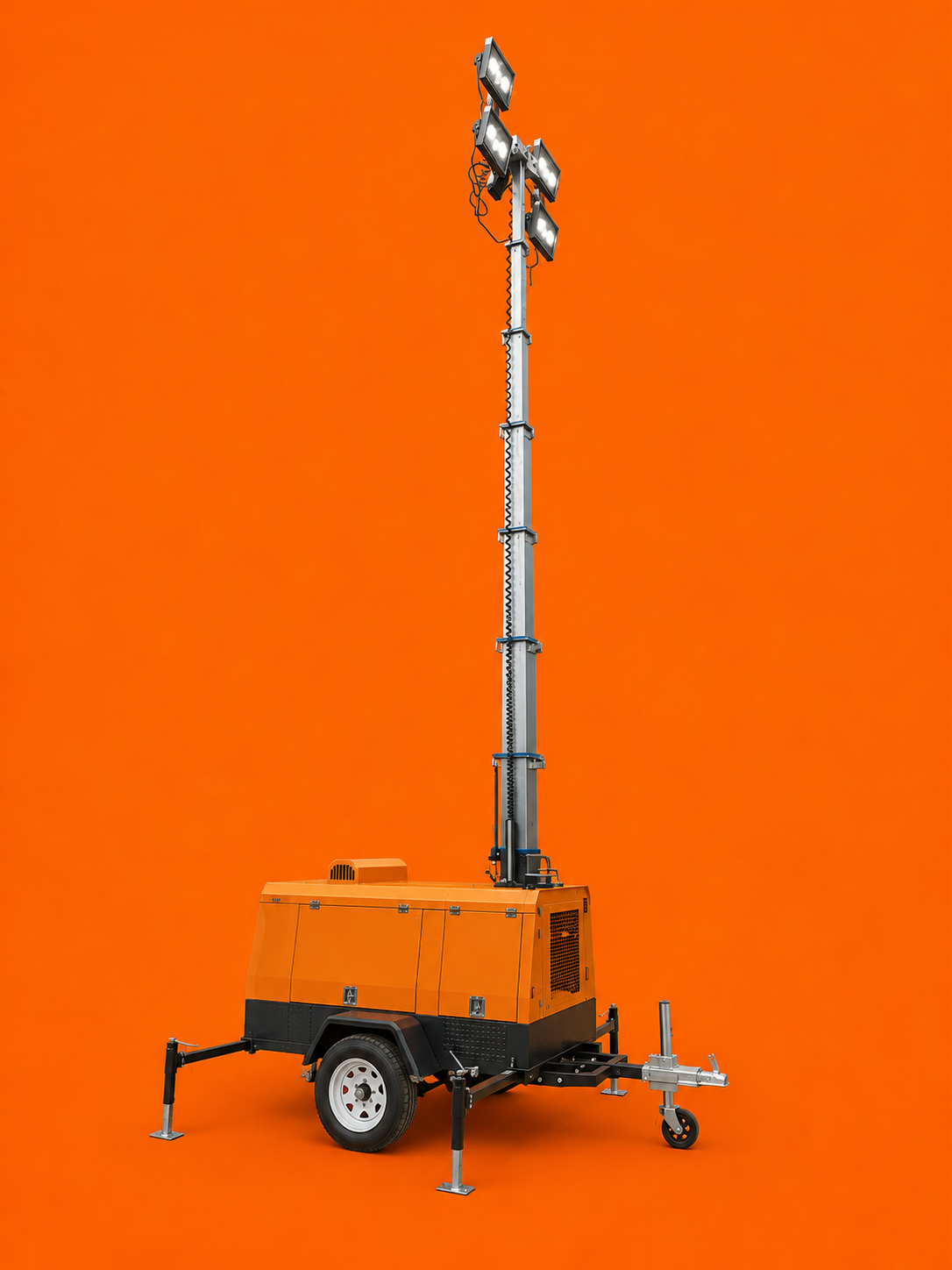

Premium Kubota Diesel LED Light Tower Trailer – 9 Metre Electric Mast | LT5FTT

The Premium Kubota LT5FTT Diesel LED Light Tower is a professional-grade mobile lighting solution engineered for demanding applications including construction, mining, infrastructure projects, security, emergency services, municipalities, and equipment rental fleets. Powered by a genuine Kubota diesel engine and fitted with a high-output LED lighting system, this premium light tower delivers exceptional reliability, fuel efficiency, and long operating hours.

Featuring a 9-metre electrically operated telescopic mast, four powerful LED floodlights, and a robust braked trailer chassis, the LT5FTT provides outstanding illumination while remaining easy to transport and deploy.

Features

Engine & Generator

• Model: LT5FTT
• Genuine Kubota Diesel Engine
• Water-cooled industrial diesel engine
• Available engine configurations:
  • Kubota Z482 – Dual-cylinder
  • Kubota D1105 – Three-cylinder
• Maximum engine power:
  • Z482 – 4.8 kW
  • D1105 – 12.6 kW
• 1800 RPM operating speed
• Naturally aspirated engine
• E-TVS combustion system
• Conventional emissions system
• Fuel-efficient operation
• Low maintenance design

Generator & Electrical System

• High-quality Xingnuo alternator
• Rated output voltage: 240V
• 60 Hz operation
• Class H motor insulation
• IP65 electrical protection rating
• Industrial electrical components

LED Lighting System

• Four high-output 400W LED floodlights
• Total light output: 36,000 Lumens
• Six-section telescopic mast
• Electric self-lifting mast
• Maximum mast height: 9 metres
• Wide-area illumination for large work sites

Performance

• 100-litre diesel fuel tank
• Up to 60 hours continuous operation
• Wind resistance up to 20 m/s
• Noise level approximately 72 dB
• Suitable for extended unattended operation

Trailer & Chassis

• Heavy-duty single axle trailer
• 1500 kg carrying capacity
• Single braked axle
• Leaf spring suspension
• Adjustable drawbar
• Retractable adjustable jockey wheel
• 14-inch wheels and tyres
• Heavy-duty 2-ton braked trailer coupler
• Maximum towing speed: 80 km/h

Dimensions

• Length: 2450 mm
• Width: 1350 mm
• Height: 2650 mm
• Approximate weight: 860 kg

Road Equipment

• Combination 4-in-1 rear lighting including brake, tail, indicator, and number plate light
• Standard 7-pin trailer plug
• Red 50 mm front mudguard reflectors
• White 50 mm rear mudguard reflectors
• Standard 1150 mm rear chevron board
• 50 mm yellow reflective tape covering approximately 70% of both trailer sides
• Heavy-duty mudguards (not designed as standing platforms)

Certifications

• CE Certified
• ISO 9001 Certified

Ideal Applications

• Construction sites
• Mining operations
• Roadworks and infrastructure projects
• Oil and gas facilities
• Security and perimeter lighting
• Outdoor events
• Emergency response and disaster relief
• Municipal maintenance
• Industrial plants
• Plant hire and equipment rental companies
• Agricultural operations

The Premium Kubota LT5FTT Mobile Light Tower is designed to provide maximum reliability, exceptional fuel economy, and superior lighting performance in the toughest environments. With its genuine Kubota diesel engine, 9-metre electric mast, 36,000-lumen LED lighting system, and heavy-duty braked trailer, it is the ideal solution for professional users who require dependable portable lighting across South Africa.

Please Note: Trailer supplied in standard specification with no additional optional equipment unless otherwise specified.
